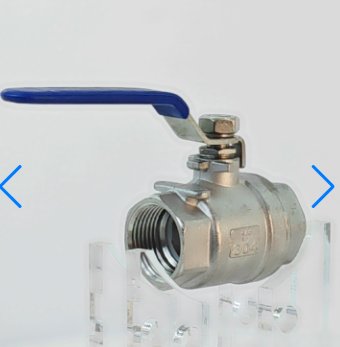

Understanding the Manual Two-Piece Internal Thread Ball Valve: A Complete Guide

Manual Two Piece Internal Thread Ball Valve is an extremely popular shut-off valve within industrial, commercial, and residential piping systems. Its configuration consists of a solid spherical ball whose central hole is oriented into the path of flow when the valve is open so that fluid or gas can flow freely. By turning the ball 90 degrees, flow is stopped effectively by blocking the gap. The term' two-piece' describes the valve body as having two large, distinct junctions that are bolted or threaded together, making it simpler to maintain than a one-piece valve without sacrificing durability or pressure.

Among the most prominent features of this type of valve is the presence of an internal threading by which it may be connected directly into threaded pipes without any intermediary pipe fittings. This saves time and the cost of installation and gives a leak-proof seal. The valves work by hand with a lever handle, and are easy, reliable, and suitable where automated operation is not required.

Design and Construction Features

Manual Ball Valve 2 Piece is more economical, lasting, and easy to maintain. The two-piece design enables the body of the valve to open and have the valve internally inspected, cleaned, and replaced, without removing the complete valve from the line. These valves are typically constructed of stainless steel, brass, or carbon steel, and they are highly corrosion-resistant with high temperature and pressure ratings.

The internal threading is produced with close tolerances of a tight fit and a strong seal with the corresponding pipe thread. The internal ball is highly polished, just like a mirror, making it easy to move and nothing can leak out since it also does not create friction. To ensure wear resistance over the long term, seats and seals are typically manufactured out of PTFE or other high-performance polymers. This construction can also provide a bidirectional flow seal, i.e., it can prevent either flow direction, essential to most safety and operating considerations.

Operational Advantages

The largest operating benefit of a Manual Two-Piece Internal Thread Ball Valve is that it is easy to turn one-quarter turn. A ball valve, as opposed to a gate valve or a globe valve, can be turned 90 degrees open and shut. This is especially useful in cases where rapid shutoff is necessary to avoid damage or prove to be hazardous.

Low pressure drop is another benefit. The bore of the ball is usually equal to the inside diameter of the pipe (full port design), and liquids flow through with relative freedom of turbulence and without much loss of energy. This adapts the Manual Ball Valve 2 Piece to be usable both with liquids and gases.

Applications Across Industries

These valves have numerous applications in various industries such as the oil and gas industries, water treatment, chemical, food and beverage industries and HVAC systems. They are used in oil and gas operations and serve to shut off pipelines with crude oil, natural gas, or refined products. Their corrosion-resistant design in the water treatment plants makes them last a long time, even in chlorinated or saline water.

The Manual Ball Valve 2 Piece is suitable for a manufacturing plant aiming to control different process fluids such as steam and compressed air. These valves are widely used in the plumbing of residential and commercial buildings, and are usually applied to easily isolate portions of a system in order to have easy access during maintenance.

Maintenance and Longevity

The two-piece design makes maintenance easy. Because this type of valve can be taken apart, in case of a leak or internal wear, one end of the pipeline can be left attached to the valve. This minimizes loss of business and labor expenses. They should run regular inspections, by inspecting the seals, checking for any corrosion, and ensuring the handle works well. A Manual Two-Piece Internal Thread Ball Valve may serve several decades with no bucket failures, provided it has received adequate care.

Conclusion

The Manual Two-Piece Internal Thread Ball Valve remains one of the most versatile and widely used valve types in the world. Its combination of robust construction, easy operation, low maintenance, and adaptability to different media makes it indispensable in countless applications. Whether in oil fields, water systems, industrial plants, or building plumbing, the Manual Ball Valve 2 Piece offers proven performance and value.

For companies looking for high-quality, precision-engineered valves, HFa Valve Tech Co. Ltd. offers manufacturing expertise that ensures every valve meets rigorous standards. Partnering with a reliable supplier ensures that every installation benefits from consistent performance and long service life.
